Levo Rondo

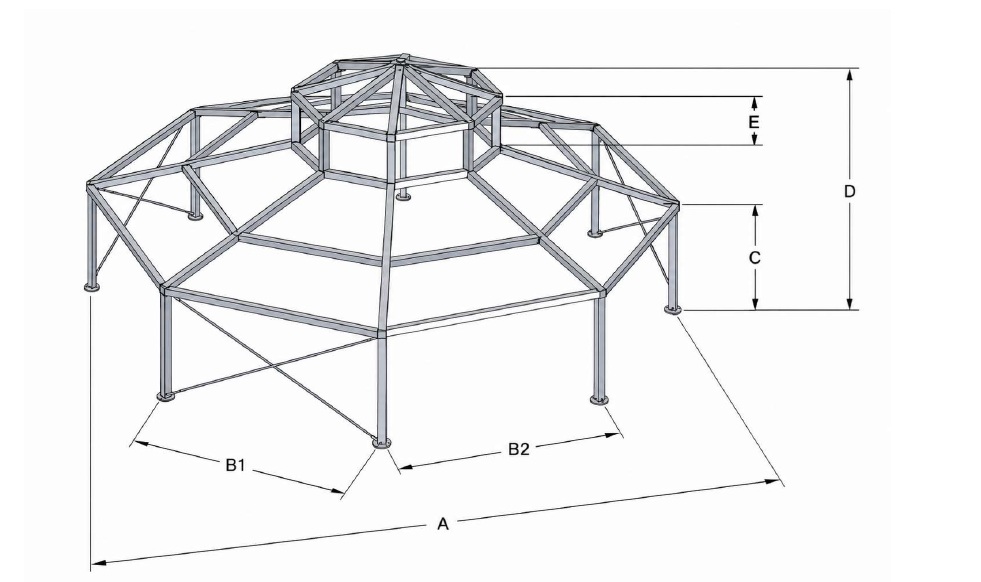

System data
Width (A) 15.08 m
Side height (C) 3.24 m
Peak height (D) 7.17 m
Side leg distance (B) 5.78 m
Roof pitch 18.00°
Longest part 5.40 m
Roof elevation ( E ) 1.48 m
Main post profile 200 x 120 mm
- Technical description
- Load capacity/Technical data
- Optional extras
- Documents
Supporting structural elements
High strength extruded 4-groove aluminium profile
Metal parts: Hot-dip galvanized, M2/B1/DIN2
hardly combustible
Fixing: 1 m long ground pins
Wind loading: DIN EN 13782
Min. length: 10,00 m
Floor
Glass
Plastic
Double-leaf glass door
Waterproof tarpaulin
